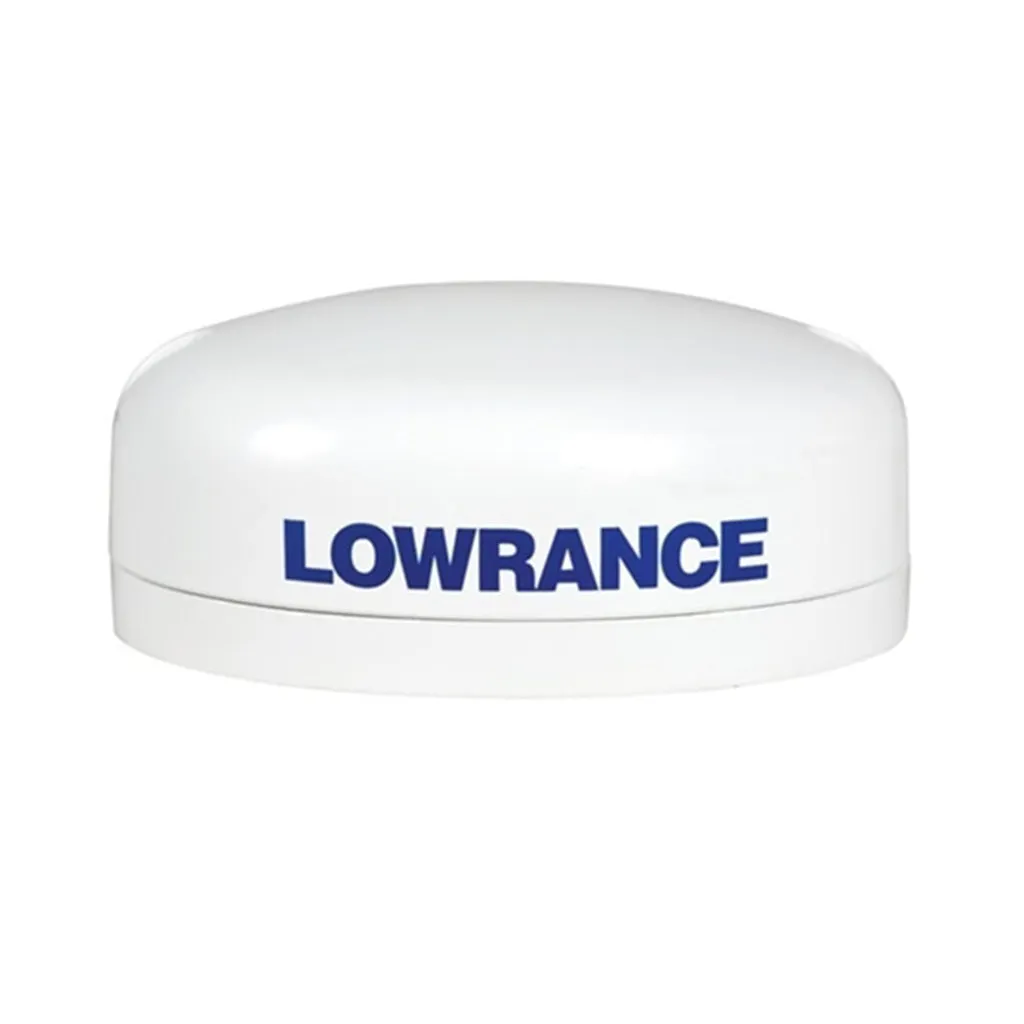

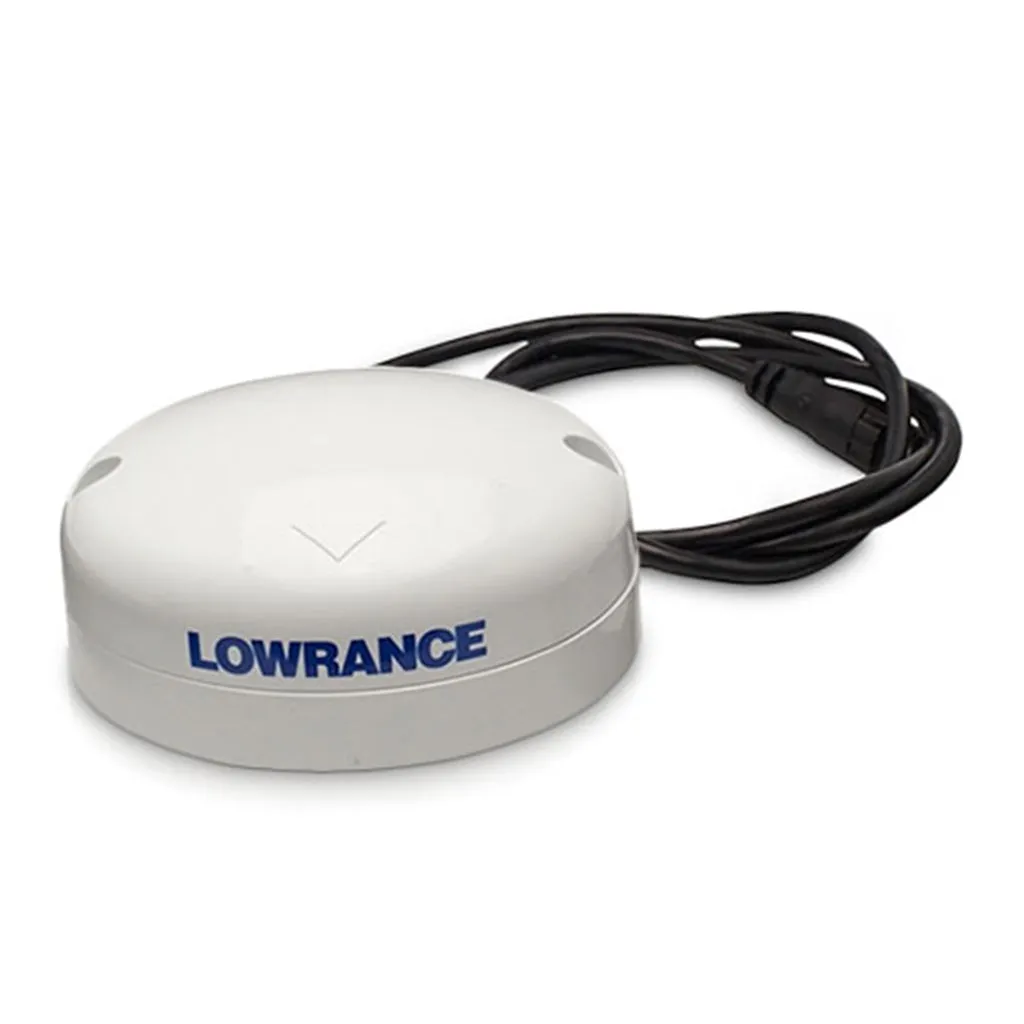

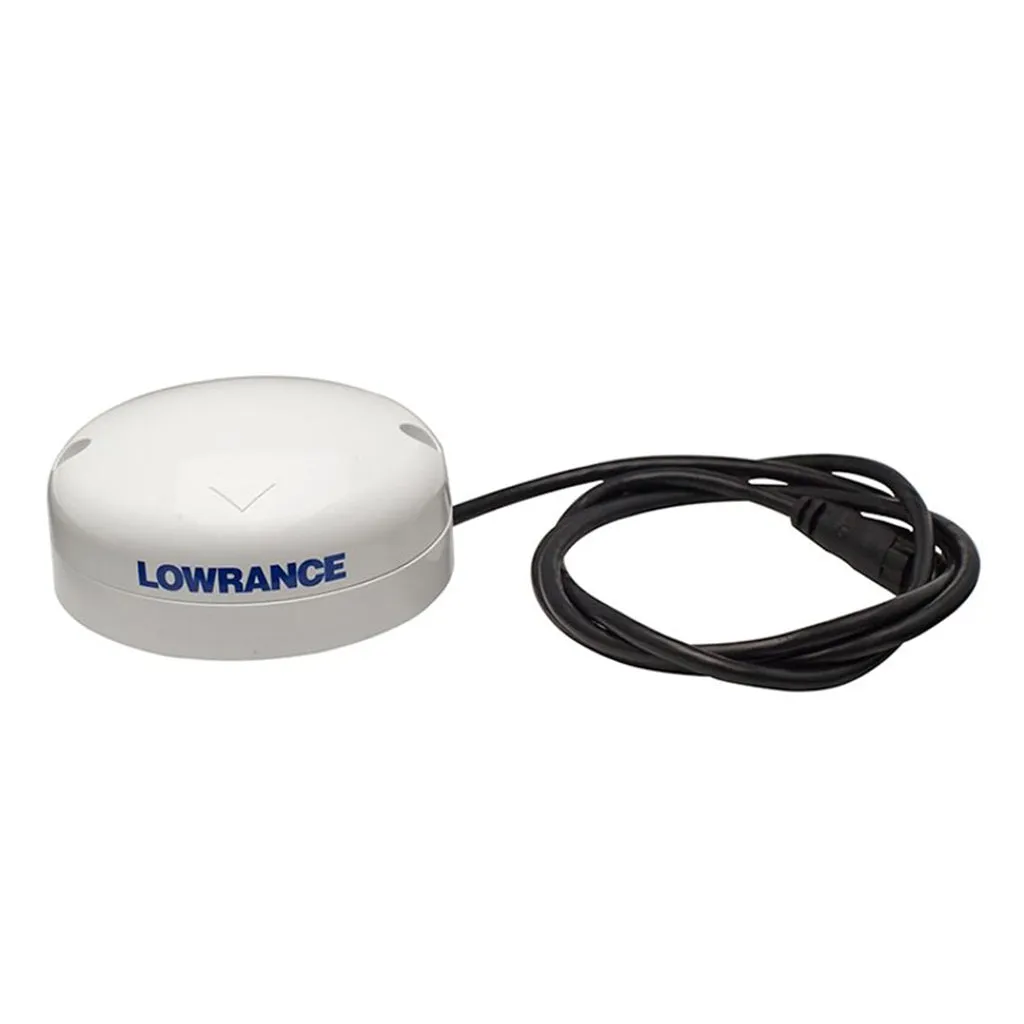

The Lowrance Point 1 GPS antenna is a precision GPG/Glonass receiver with an electronic compass. Excellent addon for your GPS or MFD (multi function display), adding speed and accuracy.
Ideal as a position and heading device, the Point-1 provides extremely accurate and rapid boat position and speed updates. In addition – unlike other position-only antennas, Point-1 provides heading for accurate boat direction at any speed and for radar/chart overlay.
Easily connects to any HDS Gen2, HDS Gen2 Touch or Elite-7 display or any NMEA 2000® network. Point-1's are fully waterproof and can be pole or surface mounted on any boat.
Lowrance Point-1 GPS Antena Key Features:
- NMEA 2000® position and heading sensor
- Supports GPS and GLONASS, Galileo-capable with future software update
- Supports SBAS including WAAS/EGNOS/MSAS
- 10 Hz updates for smooth and accurate location
- Integrated electronic compass provides 10Hz heading for chart stabilization and radar overlay, plus accurate course over ground even at low speeds
- Compact, rugged design for all marine environments and fully waterproof
- Includes spat/pole mount
- Not recommended for use with MARPA functionality of Radar
Point-1 GPS Antena Specifications:
- N2K PG Ns 126992, 129025, 129026, 129029, 129539, 129540, 127258, 127250, 127251, 127257
- NMEA connectivity: 1x NMEA 2000 Micro-C port, 2 LEN
- Approvals compliance CE under RED 2014/53/EU directive
- Consumption max: 2w
- Typical consumption: <2w
- Supply voltage: 9V DC - 18V DC
- Humidity: 40ºC, 93% RH, operating
- Operating temperature range: -25°C to 60°C (-13°F to 140°F)
- Storage temperature range: -40 to 85ºC (-40 to 185ºF)
- Waterproofing: IPX7
- GPS correction: DGPS, WAAS, EGNOS, GLOANASS, MSAS, Galileo
- GPS Receiver Channels: 32 channels
- Position Accuracy: 3m (9.8 feet)
- Time to first fix: 3s (cold start 50 seconds)
- Update rate: Up to 10 HZ (1,5,10)
- Heading sensor accuracy: /- 3º Heading, /- 1º Roll/Pitch @ 30º
- Heading sensor data available: Magnetic, Heading, Rate of Turn, Heel Angle, Trim Angle
- Heading sensor data protocol: NMEA 2000
- Sensor type: solid state
- Compass safe distance: 0.5m (20")
- Mounting type: flush mount / standard pole mount
- Weight: 0.14 kg (0.3 lbs)

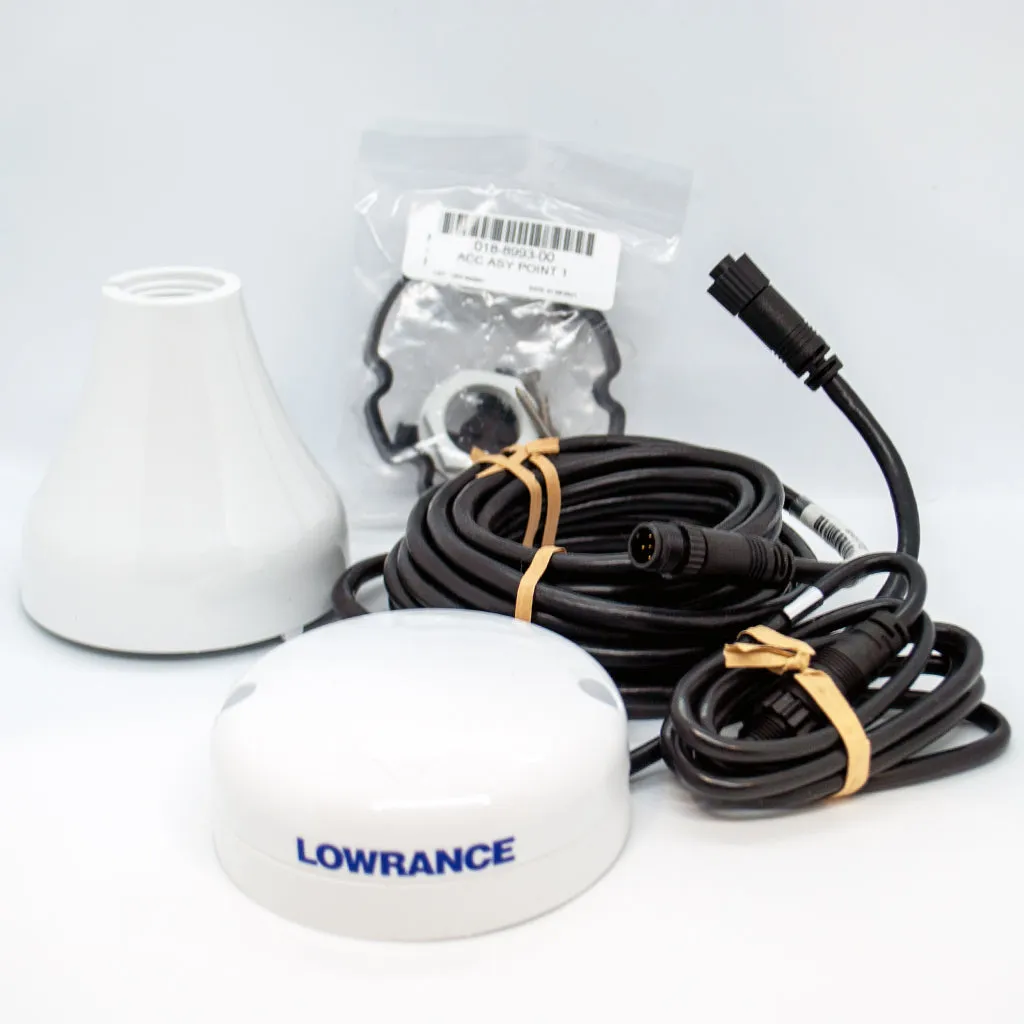

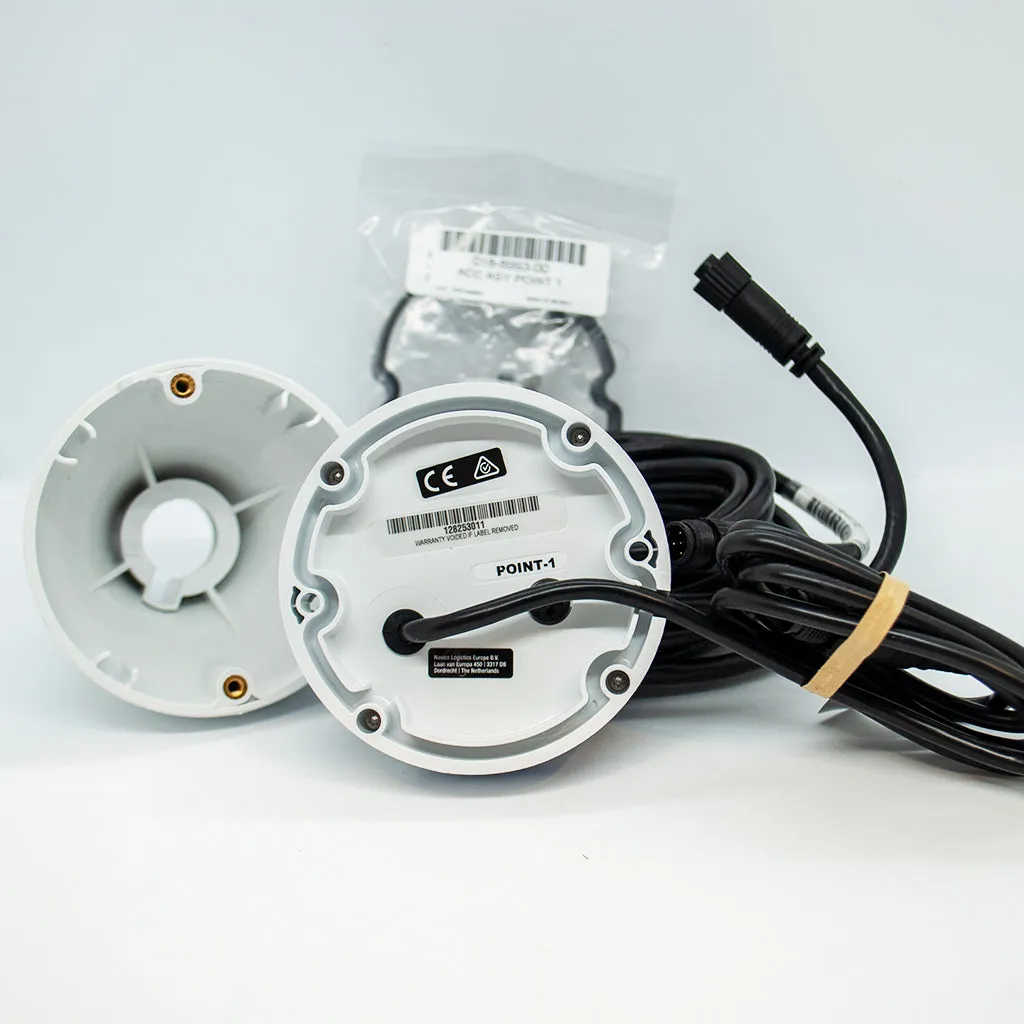

What's in the box:
- Antenna/4' cable
- T connector
- Spat/pole mount
- Mounting hardware
- Gasket seal
- Installation guide
