Humminbird XTM-9-HW-MSI-T
Model: 710283-1- This accessory is compatible with the following Humminbird products: HELIX 8 CHIRP MEGA SI GPS G3N, HELIX 9 CHIRP MEGA SI GPS G3N, HELIX 10 CHIRP MEGA SI GPS G3N, HELIX 12 CHIRP MEGA SI GPS G3N.
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)
- MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI : 1075-1150 kHz - 400ft (m)
- MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI : 1075-1150 kHz - 200ft (61m)

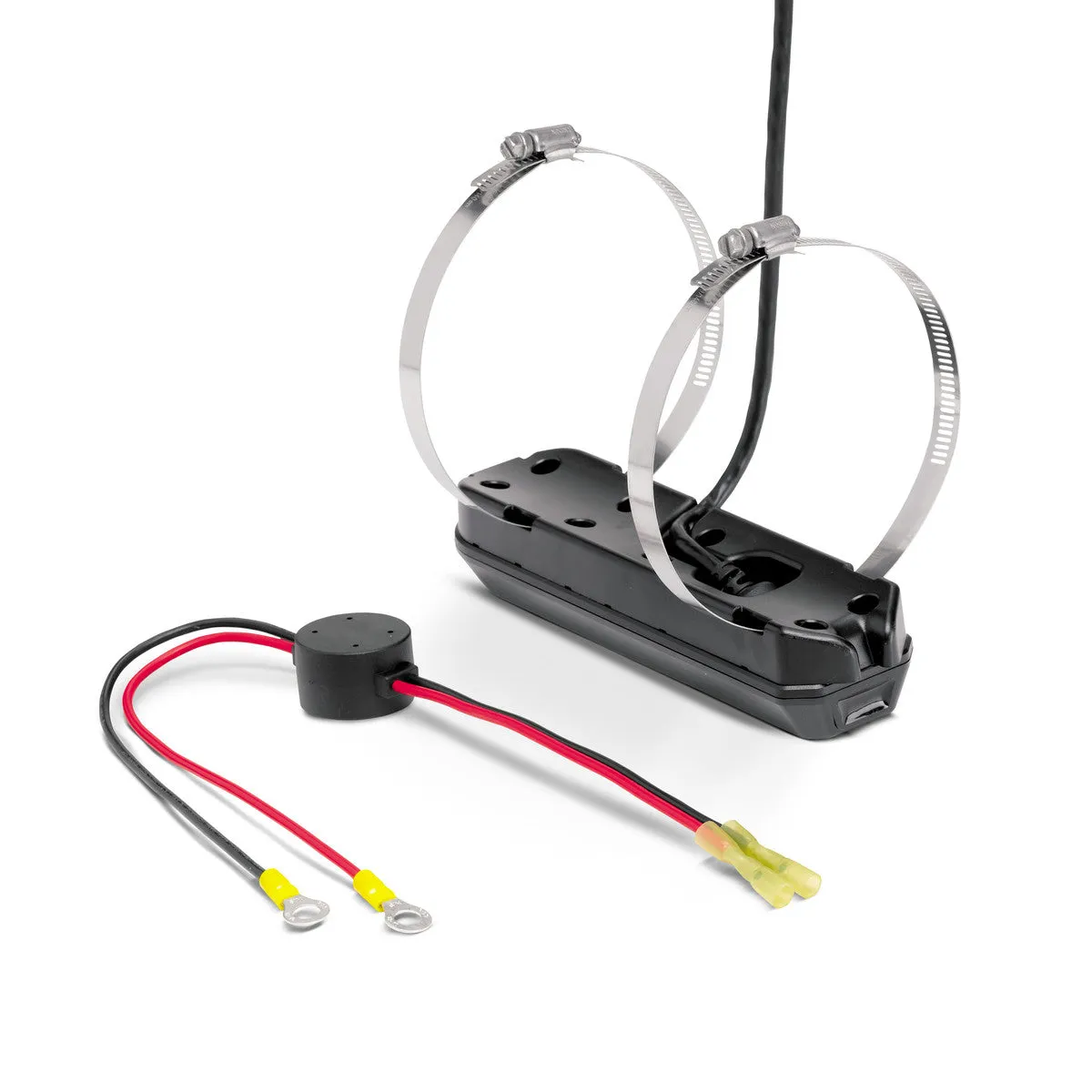

MEGA Side Imaging Trolling Motor Transducer supports MEGA Imaging /800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, trolling motor mounting hardware and 20’ cable.
Specifications| Mount Type | Trolling Motor |
| Sonar Type | MEGA Imaging, Dual Spectrum |
| Current Models | HELIX 8, HELIX 9, HELIX 10, HELIX 12 |
