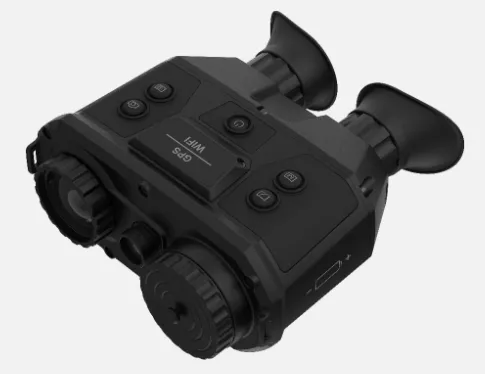

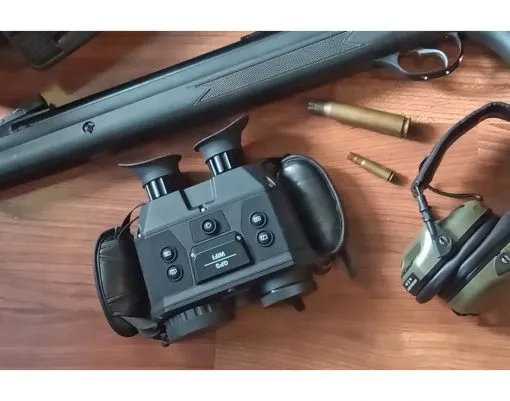

The HIKMICRO TS16-35 handheld thermal & optical bi-spectrum binocular is equipped with an ultra-low light optical detector, 640 x 512 thermal detectors, 1024 x 768 OLED display, an eyepiece with a large field of view. The device can quickly discover and locate hiding objects even under extreme environments, such as smoke, fog, rain, and snow. It can be widely applied to scenarios like patrol, law enforcement, search and rescue, drug enforcement, anti-smuggling, and suspect capture. The HikMicro TS16-35 has a detection range of a human-sized object of over 1000 meters and 3000 meters for a vehicle-sized object.

Key Features:

• Thermal: 640 × 512@25fps, optical: 1280 × 960@25fps
• NETD < 40mk (@25°C,F#=1.0)
• DDE (Digital Detail Enhancement)
• 3D DNR, adaptive AGC (Automatic Gain Control)
• Ultra-low illumination (optical channel), B/W: 0.001 lux @ (F1.0 , AGC On )
• 0.39-inch OLED display
• Automatic OLED backlight
• Manual focus for thermal lens
• Bi-spectrum image fusion and object highlight (detail enhancement and target recognition)
• Video recording, replay, picture snapshot and search (capable to review the event on device)
• Wi-Fi hot spot, GPS, cursor display
• Up to 7 hours continuous running
• IP67

  Distance Estimates:
• Lens (focal length) - 35mm
• Detection range (Vehicles) - 3157m
• Detection range (Humans) - 1029m
• Recognition range (Vehicles) - 789m
• Recognition range (Humans) - 257m
• Identification range (Vehicles) - 158m
• Identification range (Humans) - 51m

  Note: The table below is only for reference, the performance varies from model to model, and the specific data is based on 17 μm pixel pitch.
