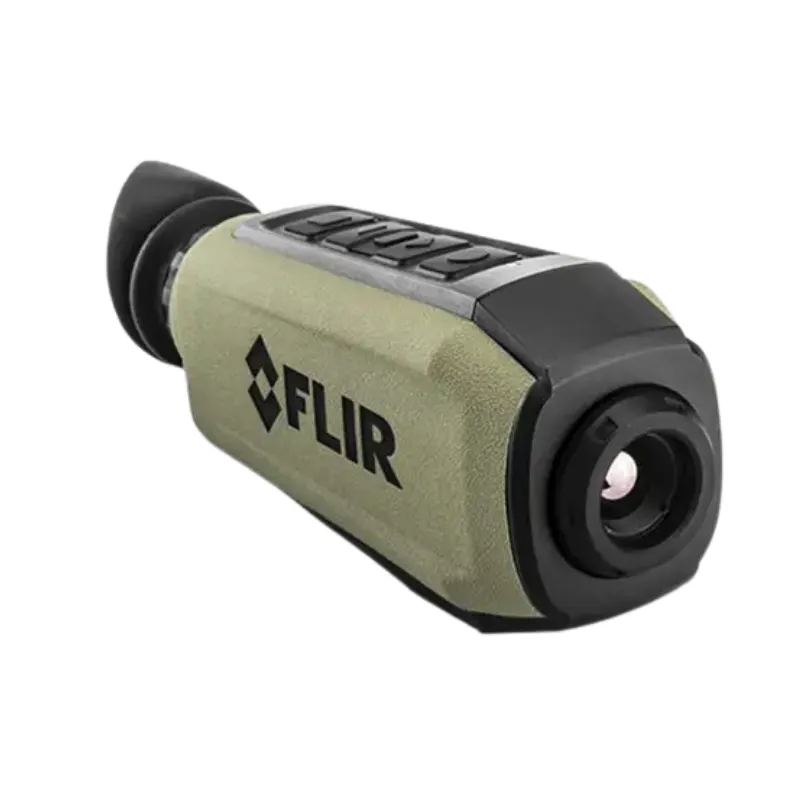

The Teledyne FLIR SCION OTM266 Outdoor Thermal Monocular captures clear thermal imaging and leverages an easy-to-use interface to detect objects of interest in complete darkness and through glaring light or haze. Built around FLIR’s powerful Boson core, it delivers fluid 60 Hz thermal video and records geotagged stills and videos for later analysis.
Designed for single-handed operation in harsh conditions, the rugged, IP67-rated housing ensures dependable use in the most challenging outdoor environments.
What's Included:
- 1 - Outdoor Thermal Monocular (SCION OTM266)
- 1 - Battery Tray
- 6 - CR123 Batteries
- 1 - USB-C Cable
- 1 - Black MOLLE Pouch
- 1 - Quick Start Guide
Features
High-Resolution BOSON Thermal Core
Delivers crisp thermal imagery with a 640 x 512 resolution powered by a 12 μm VOx microbolometer sensor.
Fast 60 Hz Refresh Rate
Maintains smooth, uninterrupted thermal imaging ideal for tracking moving objects in real time.
Versatile Lens System
Equipped with an 18 mm lens and a 24° x 18° field of view for both close-up detection and long-range observation.
Enhanced Digital Zoom
Offers 1X, 2X, 4X, and 8X digital zoom levels for precise image magnification when needed.
Integrated Storage and Connectivity
Features 2 GB internal storage with a microSD card slot (up to 128 GB), plus Bluetooth and Wi-Fi for seamless file transfer.
Built-In Recording Capabilities
Capture and store both images and videos directly on the device during any outing.
User-Friendly Interface
Revamped menus and intuitive controls enable quick access to video recording, GPS, picture-in-picture zoom, and thermal palettes.
Rugged Outdoor Design
IP67-rated housing resists dust, water, and tough outdoor conditions, keeping critical hardware protected.
Superior Visibility in All Conditions
Thermal imaging sees through darkness, glare, and haze for 24/7 situational awareness in any environment.
What's Included
Included with Your Purchase:
- 1 - Outdoor Thermal Monocular (SCION OTM266)
- 1 - Battery Tray
- 6 - CR123 Batteries
- 1 - USB-C Cable
- 1 - Black MOLLE Pouch
- 1 - Quick Start Guide
Specifications
- Core Technology: BOSON 12 μm VOx Microbolometer
- Detector Resolution: 640 x 512
- Refresh Rate: 60 Hz
- Lens System: 18 mm
- Field of View (H x W): 24° x 18°
- Optical Magnification: 1x
- Digital Zoom: 1X, 2X, 4X, 8X
- Internal Memory: 2 GB Internal / microSD (up to 128 GB)
- Focus: Infinity
- Eye Relief: 16 mm
- Display: Quad-VGA (1280 x 960) HD
- Display Focus: Manual
- Battery Type: 6 x CR123A 3V Lithium
FAQ
Q: Does the SCION OTM266 record both images and video?
A: Yes, it supports onboard image and video recording with internal and microSD storage.
Q: Can this monocular be used during the day?
A: Yes, its thermal imaging works in complete darkness, daylight, and hazy conditions alike.
Q: Is it waterproof?
A: The unit has an IP67 rating, making it dustproof and capable of withstanding water immersion.
Q: How do I transfer files from the device?
A: Files can be transferred using Bluetooth, Wi-Fi, or a USB-C cable.
Resources
Documents:
- SCION OTM Series 2 Datasheet
