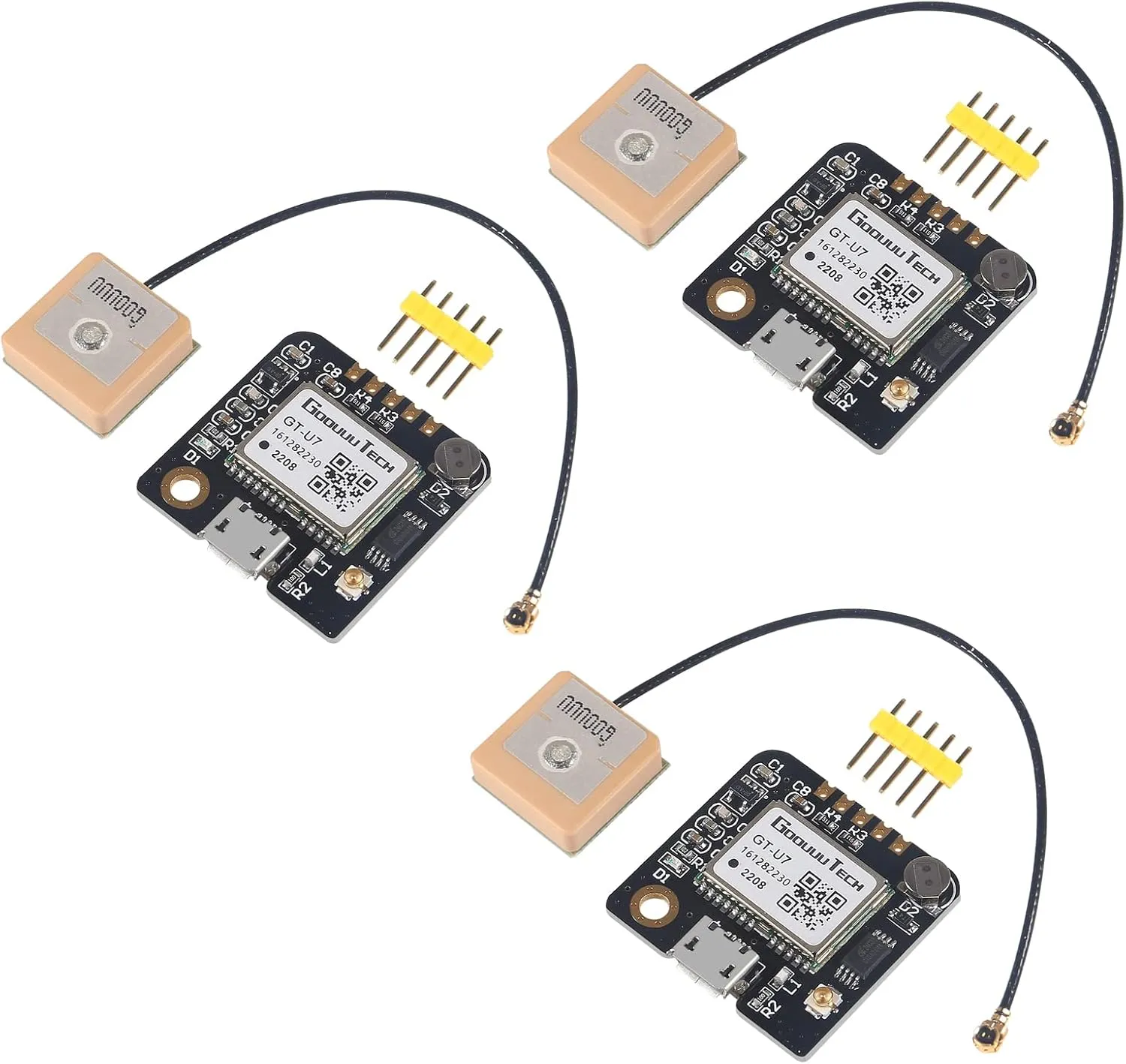

- ★GPS module compatible with NEO-6M 51 MCU STM32, working voltage: 3.6V-5V (or use Micro USB to directly supply power).
- ★The module comes with LED signal indication and data backup battery.
- ★GT-U7 module with USB directly connected to the computer, that is, with the host computer serial port function, without the need to connect to other serial modules.
- ★GT-U7 module, with high sensitivity, low power consumption, miniaturization, its extremely high tracking sensitivity greatly expanded its positioning of the coverage.
- ★GPS module with a USB interface, you can directly use the phone data cable on the computer point of view positioning effect; With IPEX antenna interface, the default distribution of active antenna, can be quickly positioned. In the ordinary GPS receiver module can not locate the place, such as narrow urban sky, dense jungle environment, GT-U7 can be high-precision positioning.
Specification:
Working Voltage: 3.6V-5V (or direct USB power supply)
Work Baud Rate: 9600 (self modification)
Onboard E2PROM allows you to save parameter data
The NEMA output format is compatible with NEO-6M
with IPEX antenna interface, the default distribution of active antenna, can be quickly positioned.
Compatible with Vehicle, Handheld devices such as PDA, Vehicle monitoring, Mobile phones, camcorders, and other mobile positioning systems, Sharing bikes, Shared mobile power.
Features:
Size 27.6x26.6mm (1.09x1.05in), with positioning holes.
Equipped with 2.54mm pitch in-line connection interface or select patch.
Working Voltage: 3.6V-5V (or use Micro USB to directly supply power).
Working Baud Rate: 9600 (can be modified by yourself).
With IPEX antenna interface, distribution of active ceramic antenna, can quickly locate.
The module comes with LED signal indication and data backup battery.
The onboard E2PROM can save parameter data.
The NEMA output format is compatible with NEO-6M.
- Product Dimensions : 0.18 x 0.14 x 0.03 inches; 1.13 ounces
- Date First Available : March 27, 2023
- Manufacturer : Alinan
- Country of Origin : China
